  • Power Apps Choosing Which Connections To Use Using Power Automate

    Power Apps Choosing Which Connections To Use Using Power Automate

    You may have run into an issue when creating Power Apps that needs to submit data to SharePoint, Dataverse, etc. But did not want to give everyone in the app access to these.
    The problem is, Power Apps uses the connections of the user using the app, meaning if the app writes to a SharePoint List, the user will need Read/Write access.
    The same goes for Power Automate if we try to send the data to Power Automate from Power Apps, it still uses the users connection who triggered the Flow.
    How can we get around this? Read below!

    Table of Contents

    Known Issues

    1. If you block the HTTP Request connector via data loss prevention (DLP), child flows are also blocked because child flows are implemented using the HTTP connector. Work is underway to separate DLP enforcement for child flows so that they are treated like other cloud flows.
    2. You must create the parent flow and all child flows directly in the same solution. If you import a flow into a solution, you will get unexpected results.
      Call Child Flows – Power Automate | Microsoft Docs

    Prerequisites

    1. The Flows must be created inside the same Solution, so a Dataverse database must be configured on the Power Platform Environment

    The Scenario

    In this scenario, I will be showing how a user can use Power Apps to create items in a SharePoint List without being a member of the Site. This will allow us to use a specific Service Account to create the data in SharePoint without giving the user in the app any permission at all!

    First we will build the Child Flow, then Parent Flow, and lastly customize the Power App

    Child Flow

    Inside your Solution create a new Cloud Flow.

    1. For our trigger we use a Manual Button, and add the data we are expecting from Power Apps to put inside our SharePoint List
      (In my example I am only bringing in one field for Title)
    2. Next, I add a Create Item action for my SharePoint List, and add the Parameters from the trigger inside the action.
    3. Lastly, I add a ‘Respond to PowerApp or flow’ action, I create an Output called Success, and some details about what was created.
    Child Flow


    Make sure to use the Connection you want users of the App to use for the SharePoint Create item action.

    Save and go back to the Flow dashboard screen (where you see the Details and run history screen).

    There will be a Card on the right side called ‘Run only users’ click Edit

    Run only users

    Under Connections Used, switch ‘Provided by run-only user’ to the connection you want to be used by users of the App
    (They wont have access to this Connection outside this Flow)

    Run only user

    Click Save,

    Now onto the Parent Flow

    Parent Flow

    Go back to the Solution and Create another Cloud Flow.

    1. For our trigger we use the PowerApps button trigger.
    2. As best practice, create Variables for your data that is coming from Power Apps. Don’t forget to name them, as this will be the parameter name in Power Apps,
      Use the ‘Ask in PowerApps‘ dynamic content for your variable values.
    3. Next we use a action called ‘Run a Child Flow’
      (If you do not see this action, your Flow was not created inside a Solution)
      Add the parameters (these were the input parameters from the last Flow that we just created).
    4. Lastly, add ‘Respond to a PowerApp or flow’ action. For this demo I am adding the parameter ‘Success’ this is from the child Flow.


    Click Save.

    Power App

    Now onto the Power App, I am going to create a simple Power App with 1 TextInput for Title, and a Button to Pass the data to Power Automate.
    Here are my controls for reference:

    TextInput_Title
    Button_SendToFlow

    For the Button:
    1. Add the Flow to the button by clicking on the Button,
    2. Clicking Action tab on top of page,
    3. Clicking Power Automate
    4. Select the Flow


    Next add the parameters for the Flow, in my case I am adding the TextInput_Title.Text

    Now, I want to add a Notification that the Item has been added, which will confirm my Flow has Run correctly. Ill be using the ‘Success’ Output parameter from the Flow for this.

    To add this, I put my Flow run inside a Variable inside Power Apps. Ill call my variable Results, and IO add this to the OnSelect property of the Button where my Flow is:

    Now I use the ‘Notify’ function to notify the user of the item being created, I add this after the semicolon. So my function looks like this in the end:


    So my final code looks like this:

    Set(
    Results,
    'PA-Trigger1'.Run(TextInput_Title.Text)
);
Notify(
    Results.success,
    NotificationType.Success
);
Reset(TextInput_Title)

    Now lets test it!

    Conclusion

    I am using a User called ‘Demo User’ I have shared the App with this user. But they are not part of the SharePoint Site


    Here is the SharePoint Site:

    Now Logged in as the Demo User to test this:

    Logged in as Demo User


    Button Clicked >

    Button Pressed, Flow Completed

    Now to check SharePoint >

    Test Success!!

    Done!
    So this was just a basic example on how we can create data inside a Data Source that the user of the App does not need access too.

  • Using Environment Variables as Parameters for Power Automate Deployments (ALM)

    Using Environment Variables as Parameters for Power Automate Deployments (ALM)

    Summary

    Deploying Power Automate Flows can be a headache if you have to manually change values inside the Flow for each environment. You also run the risk of missing a value.

    This post will go in depth on using Environment variables inside solutions to allow certain values to be used in different environments.
    I will be using Two(2) environments for this demo:
    Dev, and Test

    This demo will utilize the data type ‘JSON’, this will save loads of time.

    Terms / Glossary

    Here are some familiar terms that will help in this post:
    Default Value = The value that you’re expecting after you deploy the Flow.
    This will be our Test environment values

    Current Value = The value that overrides the Default Value.
    This will be our Dev environment values

    Parameters = These are just values. For example 2 + 2. Each 2 is a parameter of the addition expression (+)

    ALM = Application Lifecycle Management
    Documentation on ALM

    Contents

    Prerequisites
    The Scenario
    Getting Parameter Values
    Creating Environment Variables
    Creating The Flow
    Using The Parameters
    Export And Import Deployment
    Conclusion

    Prerequisites

    • Access to Common Data Service
    • Access to create, export, and import Solutions

    ** Note: I Have created this guide to be as simple as possible, If you name everything as I do, you will be able to copy and paste all my expressions directly into your Flow **

    The Scenario

    My Flow posts a message into Microsoft Teams group. When deploying the Flow into different environments, I want to change the Teams content like:

    • Team Name
    • Channel ID
    • Subject

    Usually after deploying, we can go in to the Flow and manually change the values. This can cause errors, especially if we forget to change some values after deploying (I may have done this a few times).

    Getting Parameter Values

    It is important to note that not all Action values can be parameterized. Follow the steps below to see if the values can be parameterized:

    Teams Example:
    My Teams action, I want to parameterize the Team Name, Channel ID, and Subject. For this I add the Action, and select the values as needed.

    Now with the information filled in, click the 3 dots ‘. . .’ on the action, and click ‘Peek Code’.

    Dev Parameters

    In the ‘Peek code’ view, we can see the different parameters and the values that this action uses in the background. Copy these values into notepad or code editor for use later. I have created a simple JSON to be placed in my Environment Variable later on.

    I will be using the Env value for my Subject in the teams message

    For example:
    Team = 1861402b-5d49-4850-a54b-5eda568e7e8b
    Channel = 19:be3759762df64d94a509938aa9962b29@thread.tacv2
    Subject = Message From Dev Environment

    To test that we can use custom values as parameters, we want to grab these values from above and insert them into the ‘Teams Post a message’ action as custom value, than run the Flow

    Mine looks like this now:

    Now run the Flow to make sure everything works as expected using the Custom values

    Now that we know Custom values work for the inputs/parameters for the action. We now want to get the values for the other environment. Remove the custom values from the inputs and choose the correct value that we want to point to when this Flow is deployed to another environment. For example:

    Again we do a ‘Peek code’ to get the parameter IDs that this action uses

    Test Parameters

    Copy these values into notepad or a code editor for use later. Now we have two sets of values, one for Dev, and one for Test. I have created a simple JSON to be placed in my Environment Variable later on.

    I will be using the Env value for my Subject in the teams message

    Make sure the Two(2) JSONs have the same structure. We will be using the data to populate the Environment Variables in the following steps

    Creating Environment Variables

    Environment variables can only be created inside a solution, there are multiple ways you or your organization may want this set up.

    In this demo I have created a Publisher in CDS called ‘param’, this will better define the parameters that we create inside the solution. (this is optional) The default CDS publisher could also be used.

    Create a solution inside Power Automate.
    Click Solutions on the left navigation menu,
    Than click ‘New Solution’ on the top on menu, and fill the information out

    Once the solution is created,
    Click ‘New’ > Environment variable

    Now fill in the information like the screenshot below.

    Note, I will be using the Data Type as JSON. I use this for simplicity, as I have more than one value I want to add. Also we can use the Parse JSON action in Flow to reference each value separately. You can use any Data Type you like

    Now we populate the values we want to use per environment, the way we do this is fill in the Default Value, and the Current Value.


    Default Value = The values we want for the other environment, in this case Test
    Current Value = The values we want to use for this environment, in this case Dev

    Once the values are pasted in click ‘Save’

    Creating The Flow

    I will be creating the Flow inside the solution that the Environment Variable is in from above.
    Inside the solution click ‘New’ > Flow

    For the demo I will use a Manual trigger, than add Two(2) ‘Initialize Variable’ actions

    Initialize variable – Schema Name
    Name: schemaName
    Type: String
    Value: Put the Name of the environment variable in the value (This can be found on the main screen of the solution under Name column)

    Initialize variable – Parameters
    Name: parameters
    Type: String
    Value: Leave blank for now, this variable will store either the Default Value or Current Value, based on which environment we are in

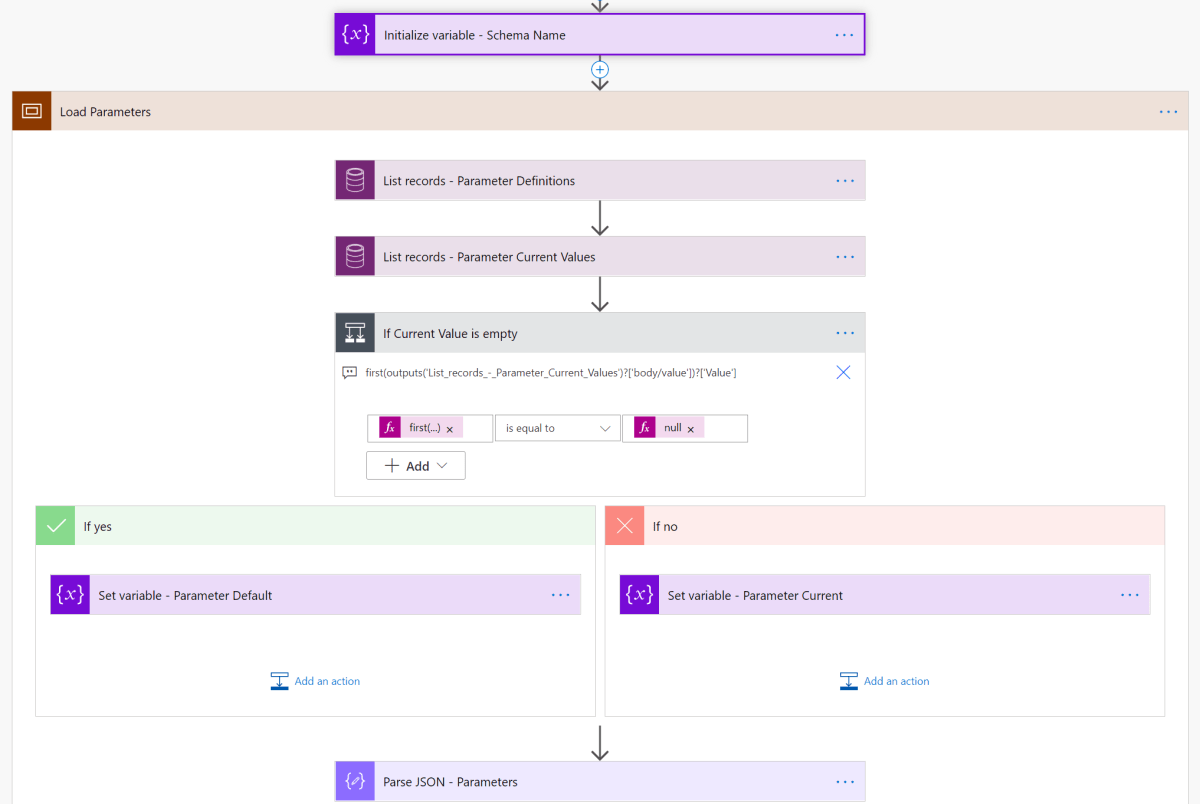

    Next add a ‘Scope’ action to hold all the actions that will get the parameters

    I renamed my ‘Scope’ to Load Parameters.

    NOTE: You can copy and paste my filter query as long as you kept the same name as I did. When you see the @ in Power Automate, this allows you to call expressions without having to go into the expression tab. If you want to build the expression yourself, I will include the syntax under each picture of the List Records actions and on

    Inside the Scope, add Two(2) ‘Common Data Service Current Environment – List Records’ actions.

    1) List records – Parameter Definitions
    Entity name: Environment Variable Definitions
    Filter Query: schemaname eq ‘@{variables(‘schemaName’)}’

    schemaname eq ‘YOUR ENVIRONMENT VARIABLE NAME’

    2) List records – Parameter Current Values
    Entity name: Environment Variable Values
    Filter Query: environmentvariabledefinitionid_value eq ‘@{first(outputs(‘List_records-_Parameter_Definitions’)?[‘body/value’])?[‘environmentvariabledefinitionid’]}’

    @{first(outputs('List_records-_Parameter_Definitions')?['body/value'])?['environmentvariabledefinitionid']}
    first(outputs(‘List_records-_Parameter_Definitions’)?[‘body/value’])?[‘environmentvariabledefinitionid’]

    Now we need to check which value to use, the Default Value, or the Current Value.

    Add an ‘If Condition‘ Build the condition like this:

    If Current Value is empty
    Left Value: @first(outputs(‘List_records_-_Parameter_Current_Values’)?[‘body/value’])?[‘Value’]

    @first(outputs('List_records_-_Parameter_Current_Values')?['body/value'])?['Value']

    is equal to
    Right Value: @null

    @null
    first(outputs(‘List_records_-_Parameter_Current_Values’)?[‘body/value’])?[‘Value’]

    Next in the ‘If yes‘ block add a ‘Set Variable‘

    Set variable – Parameter Default
    Name: parameters
    Value: @{outputs(‘List_records_-_Parameter_Definitions’)?[‘body/value’][0][‘defaultvalue’]}

    @{outputs('List_records_-_Parameter_Definitions')?['body/value'][0]['defaultvalue']}
    outputs(‘List_records_-_Parameter_Definitions’)?[‘body/value’][0][‘defaultvalue’]

    In the ‘If no‘ block add a ‘Set variable‘

    Set variable – Parameter Current
    Name: parameters
    Value: @{outputs(‘List_records_-_Parameter_Current_Values’)?[‘body/value’][0][‘Value’]}

    @{outputs('List_records_-_Parameter_Current_Values')?['body/value'][0]['Value']}
    outputs(‘List_records_-_Parameter_Current_Values’)?[‘body/value’][0][‘Value’]

    Under the ‘If condition‘ add a ‘Parse JSON‘
    Name: Parse JSON – Parameters
    Content: @{variables(‘parameters’)}
    Schema: To generate your schema, Click the ‘Generate from sample’ button, than paste in the JSON that you used for Default Value

    We are done with the parameter scope now..

    Using The Parameters

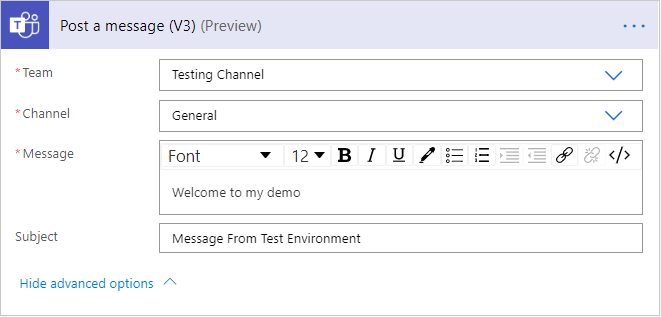

    I will be adding a Teams Action ‘Post a message‘ I will use the dynamic content from my ‘Parse JSON‘ action.

    Triggering the Flow, I expect the Dev values to be used (Current Value)

    Here is the Teams message:


    Next we will export and import into a different Environment which will use different parameters (Default Value)

    Export And Import – Deployment

    Overview of this sections steps:
    1. Remove Current Value from Environment variable
    2. Publish Solution
    3. Export Solution
    4. Import Solution
    5. Authorize any Connections
    6. Enable Flow
    7. Trigger / Test

    1. Remove Current Value from Environment variable

    Inside the Solution click on the Environment variable, under Current Value click the 3 dots ( . . . ) Select Remove from this solution

    This will only remove the values from this solution. The Current Values will still be in CDS and can also be added back into this solution if needed by clicking Add existing under Current Value
    1. Publish Solution

    Inside your solution, click ‘Publish all customization’

    1. Export Solution

    Once published click ‘Export’

    Export as ‘Managed’ or ‘Unmanaged’ Choose either or based on your needs.

    1. Import Solution

    Switch to your other Environment, and click Solutions tab. Click ‘Import’

    Choose your Zip file from your Export, and follow instructions by clicking ‘Next’

    1. Authorize any Connections

    Once the solution is imported successfully, you may need to authorize any connections inside the Flow. This can be done by clicking on the Flow from inside your solution, and clicking ‘Sign in’ on all actions > Click ‘Save’

    1. Enable Flow

    Now enable / turn on the Flow

    1. Trigger / Test

    Trigger the Flow to confirm the values are coming over as correct (Default Value).

    Test Env – Using Default Value as expected

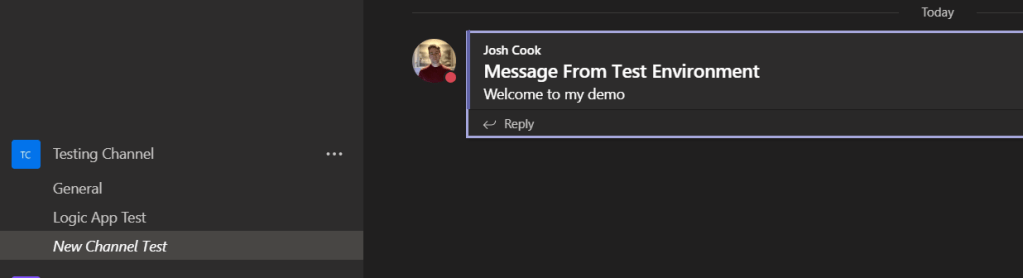

    Now in Teams our message has been posted in a different team chat, different channel, and with the ‘Test’ text in the subject line

    Conclusion

    After reading this post:
    https://powerapps.microsoft.com/en-us/blog/environment-variables-available-in-preview/
    I wanted to build a step by step guide, that is practical and also beneficial. Since this feature is in ‘Preview’ this could change without notification.

    I hope this guide is able to help you get your ALM for your Power Automate Flows more sustainable.

    Flow Template Download and guide:
    Loading Environment Variables – Template

    Thanks
